Solar Lighting Direct

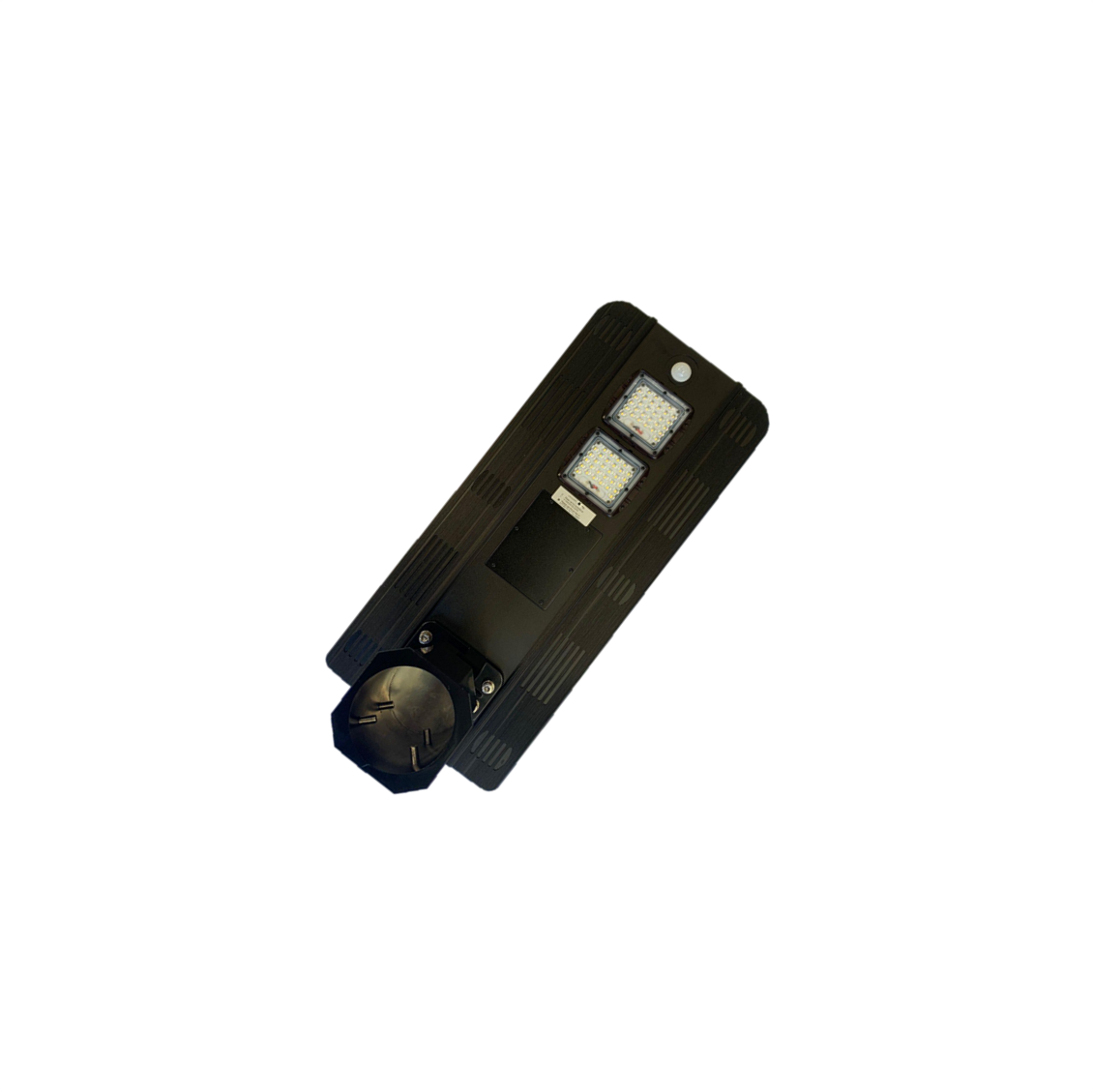

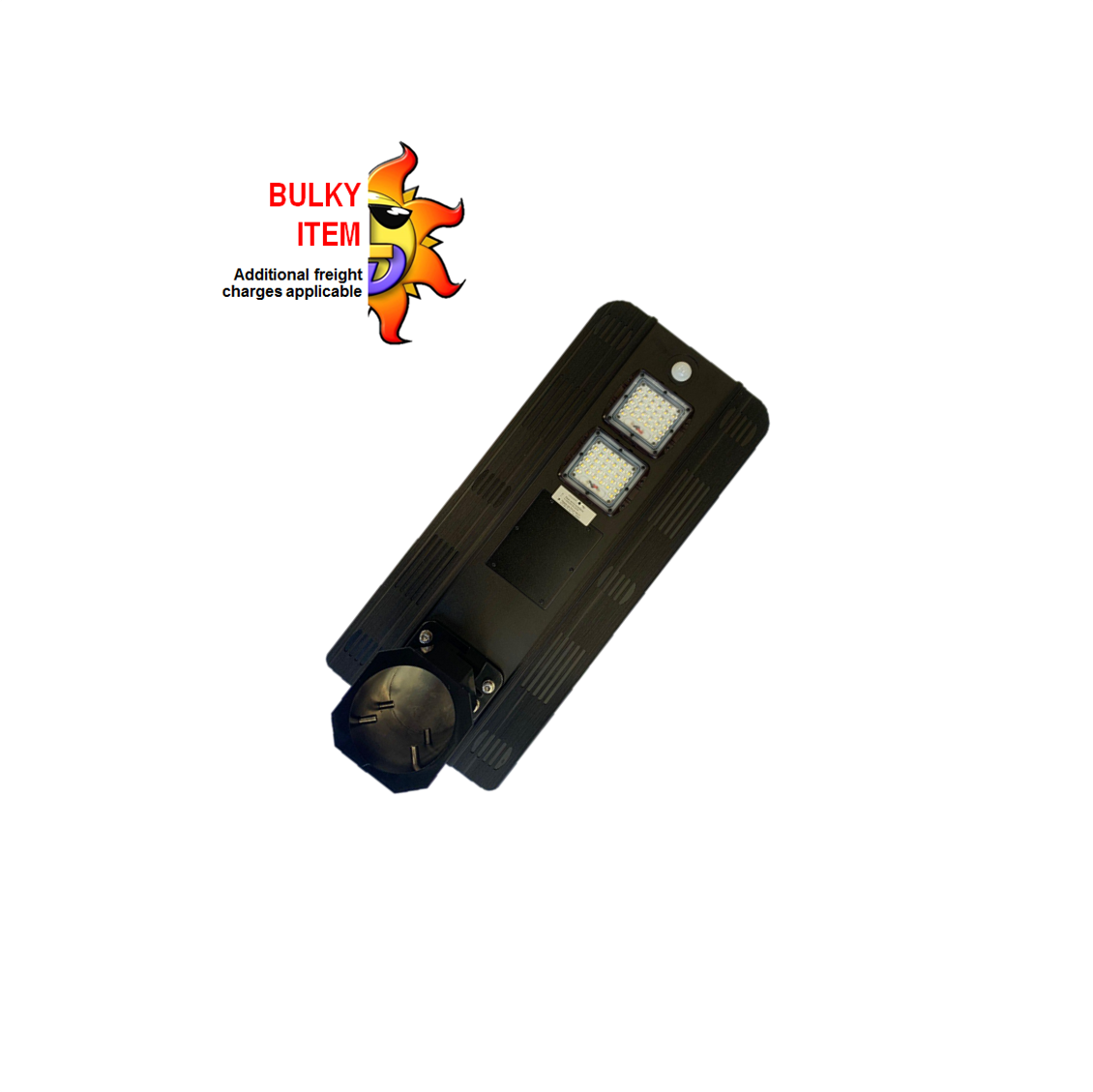

(All-In-One) 15W Street Light "Shoe Box" with PIR Sensor

(All-In-One) 15W Street Light "Shoe Box" with PIR Sensor

SLDSTL-15W/AIO

Price on Application

15w "All-In-One" street light complete with integrated PIR sensor, built in solar panel and constructed of aluminium alloy these fittings are custom engineered to provide hours of uninterrupted illumination to suit any environment or application.

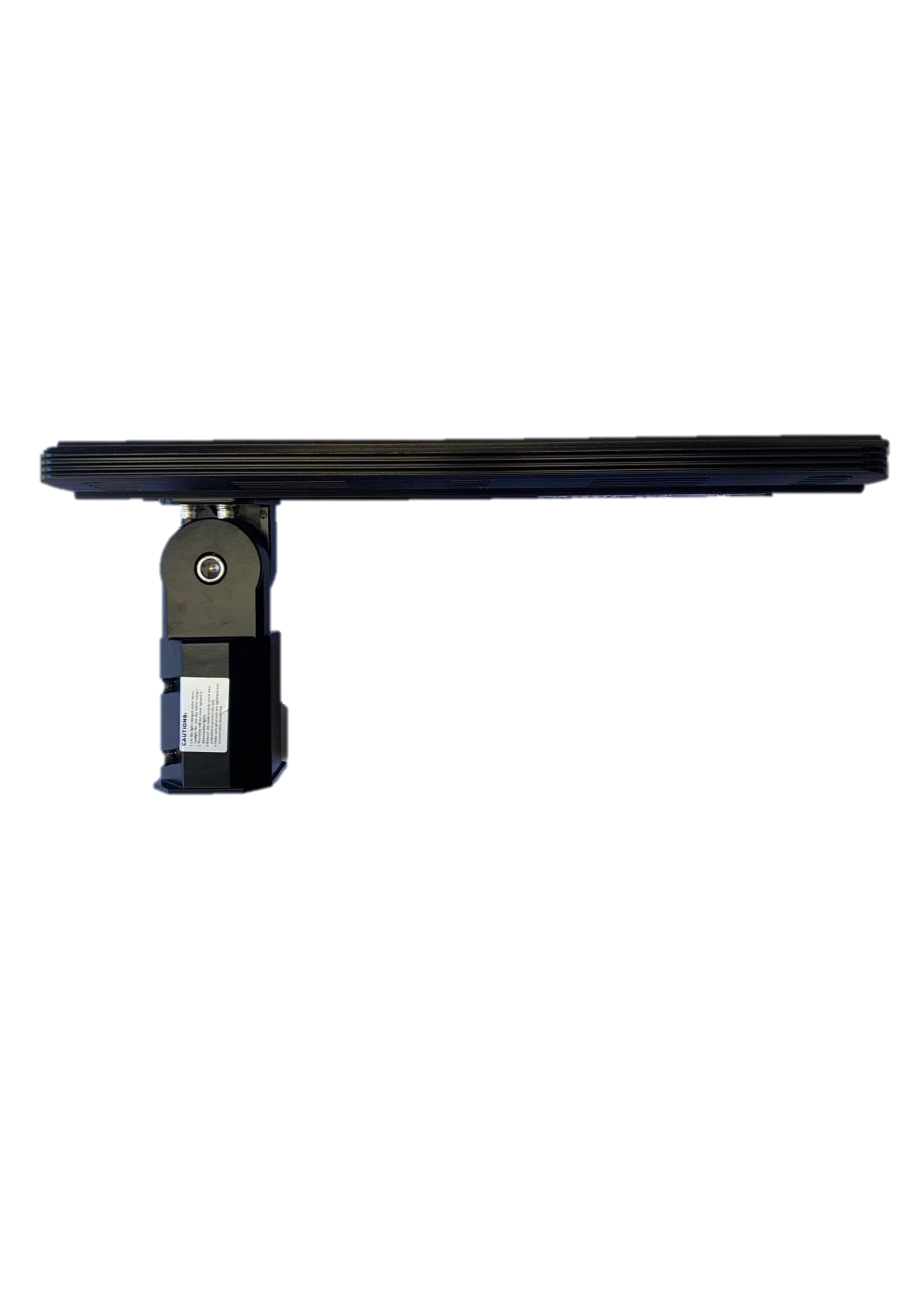

This fitting is engineered to operate at 30% brightness from dusk, when the PIR sensor is triggered the fitting will illuminate to 100% brightness for approx. 10mins or until the sensor is no longer triggered. The adjustable spigot on the fitting allows for directing the light angle to suit the environment or application.

The "All-In-One" design of this fitting is discrete and robust, paired with an IP rating of 65 and IK rating of 10 this fitting is suitable for public parks, housing complexes, hospitals, schools, waterfronts and any place that solar lighting is more compatible than mains powered lighting!



    Specifications

    • 1 x 3.7v 26Ah Lithium Battery
    • 160LM USA Cree LED's (Cool White)
    • 2400 Lumens at 1 metre

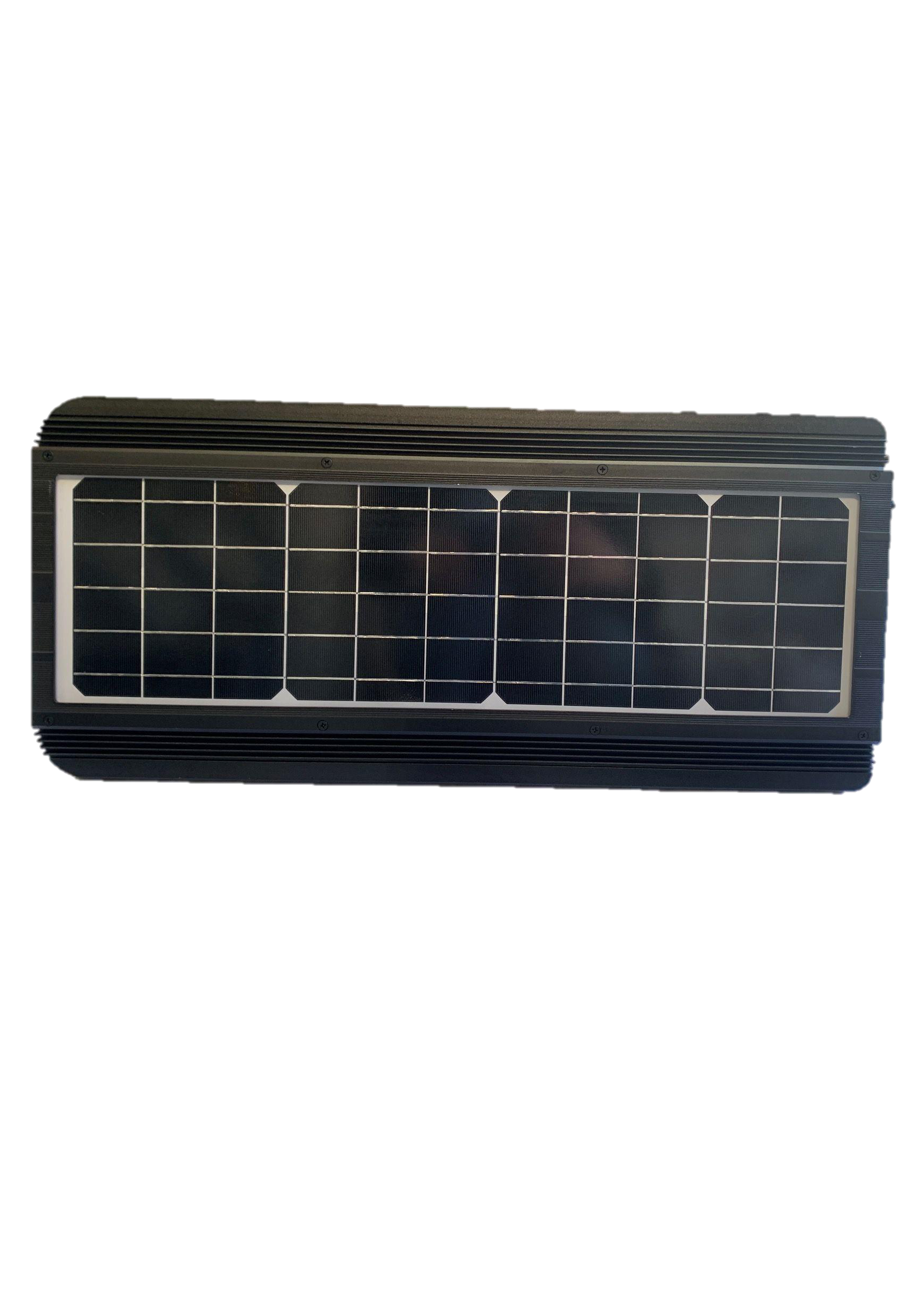

    • 20w Integrated Monocrystalline Solar Panel
    • Dimensions: 610mm (L) x 276mm (W)
    • Dust & Water Protection Rating – IP65
    • Strength and Durability Rating – IK10



    POST NOT INCLUDED - internal post diameter = ∅80mm



    Features

    • All-In-One Construction
    • Aluminium Alloy (Oxidation) Construction
    • Integrated MPPT Smart Controller
    • Approximately 6-8 Hrs Charging Time
    • PIR Sensor Control - 30% Illumination operation, 100% Illumination for approx. 10 mins when the sensor is triggered
    • Easy open compartment for battery replacement



    Download Product Specification Sheet

    Download Product Instruction Guide

    View full details
