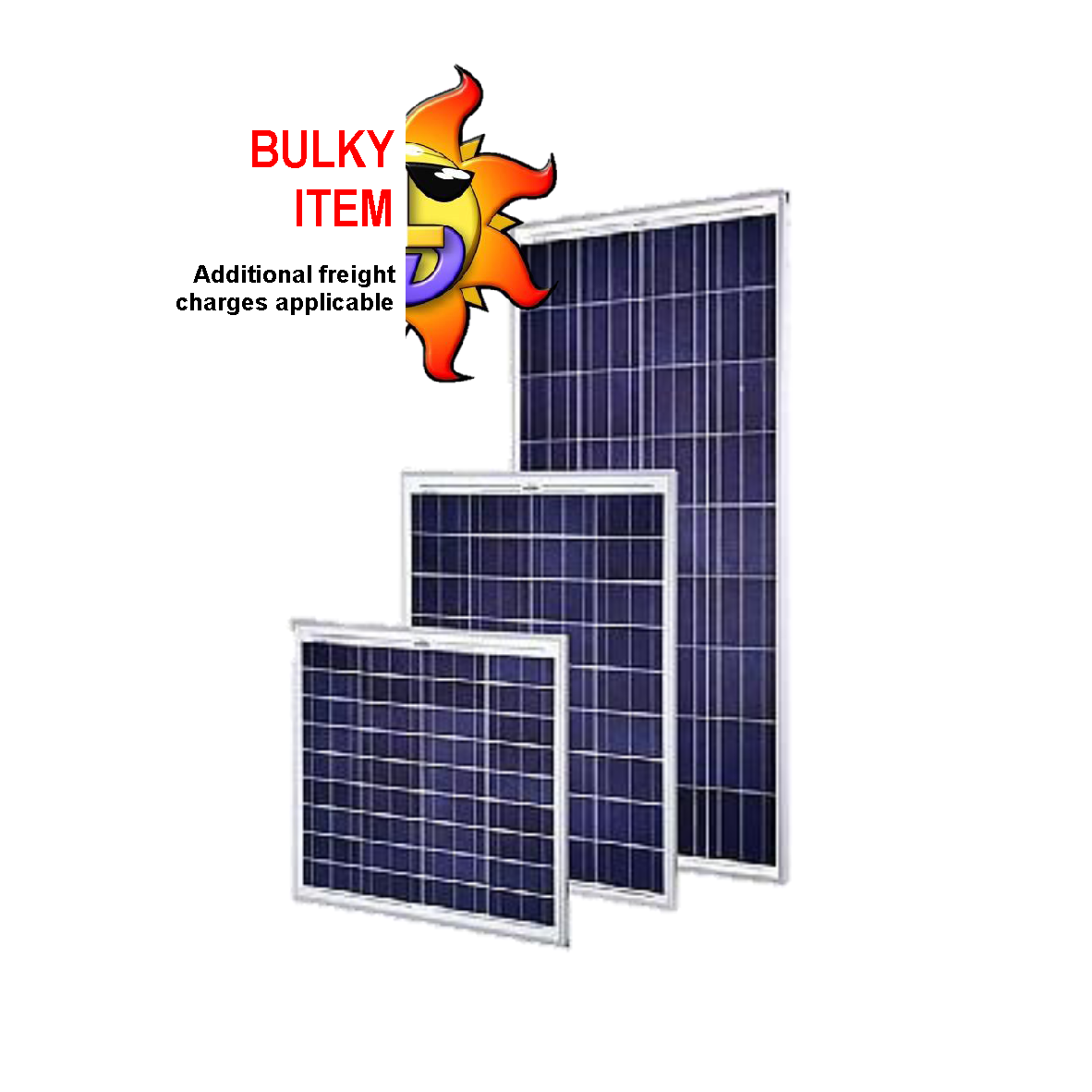

Solar Panel to Suit Commercial Lights 60W

Solar Panel to Suit Commercial Lights 60W

Code: SLDSP60

Price on Application

60W Solar Panel to suit Commercial Lights

Model numbers: SLDFL10-WW, SLDFL10-CW, SLDFL30-WW, SLDFL30-CW and SLDBTL24W


Specifications

  • Power Tolerance - 0 ~ +3%
  • Max power at STC (Pmax) - 60W
  • Optimum operating voltage (Vmp) - 18.2V
  • Optimum operating current (Imp) - 3.3A
  • Open circuit voltage (Voc) - 22.2V
  • Short circuit current (Isc) - 3.56A
  • Maximum series Fuse - 15A
  • Weight - 5.2kg
  • 630mm (L) x 670mm (W) x 30mm (H)
  • Application class - A class
  • Operating Temperature : -40oC to +85 oC
  • Maximum System Voltage – 1000V DC


Features

  • Polycrystalline panel
  • Fold out, adjustable legs
  • IP65 rated connector box
  • IP65 rated cable and plug


Applications

  • To use in conjunction with:
  • SLDFL10W-CW
  • SLDFL10W-WW
  • SLDFL30W-CW
  • SLDFL30W-WW
  • SLDBTL24W
Download PDF Specification Sheet
