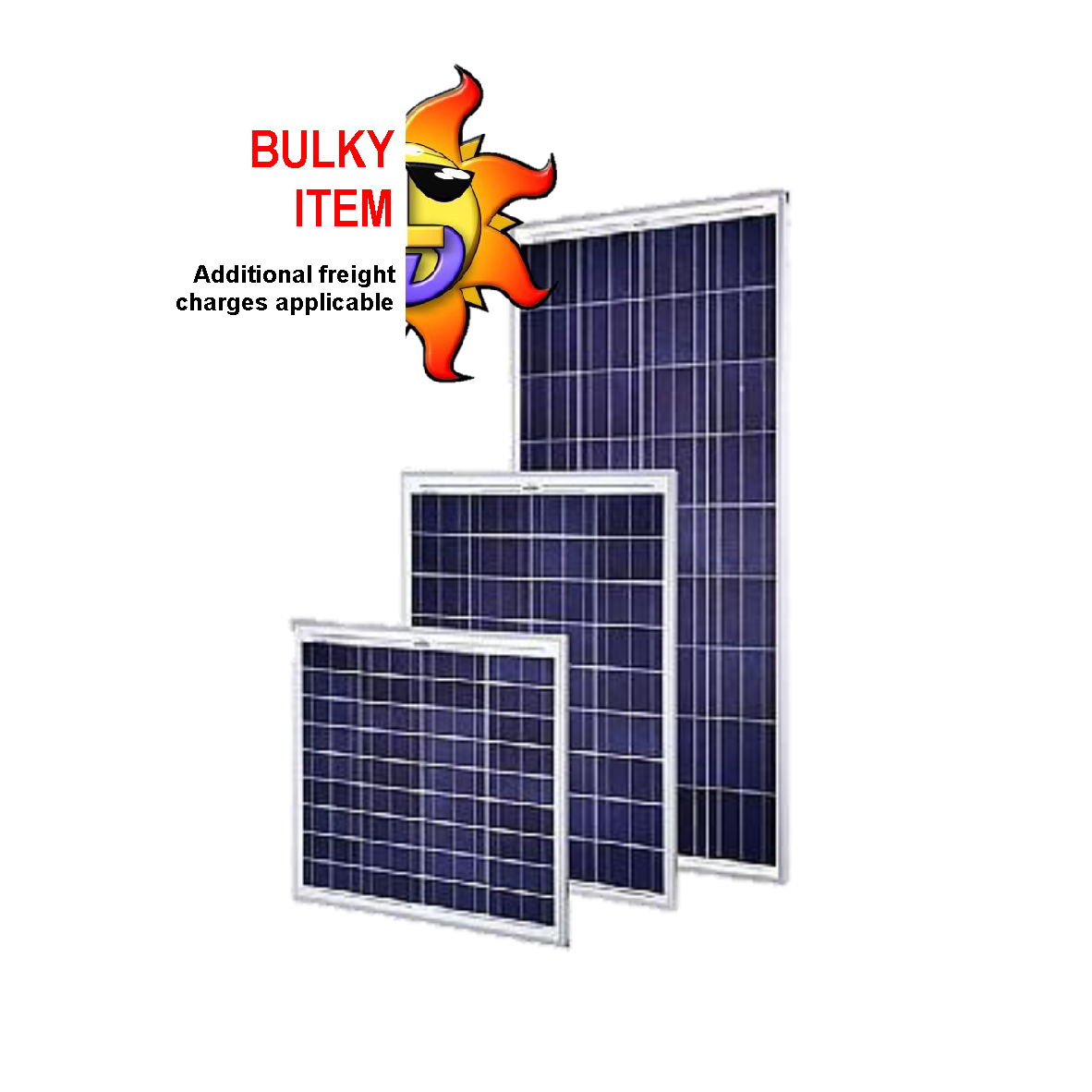

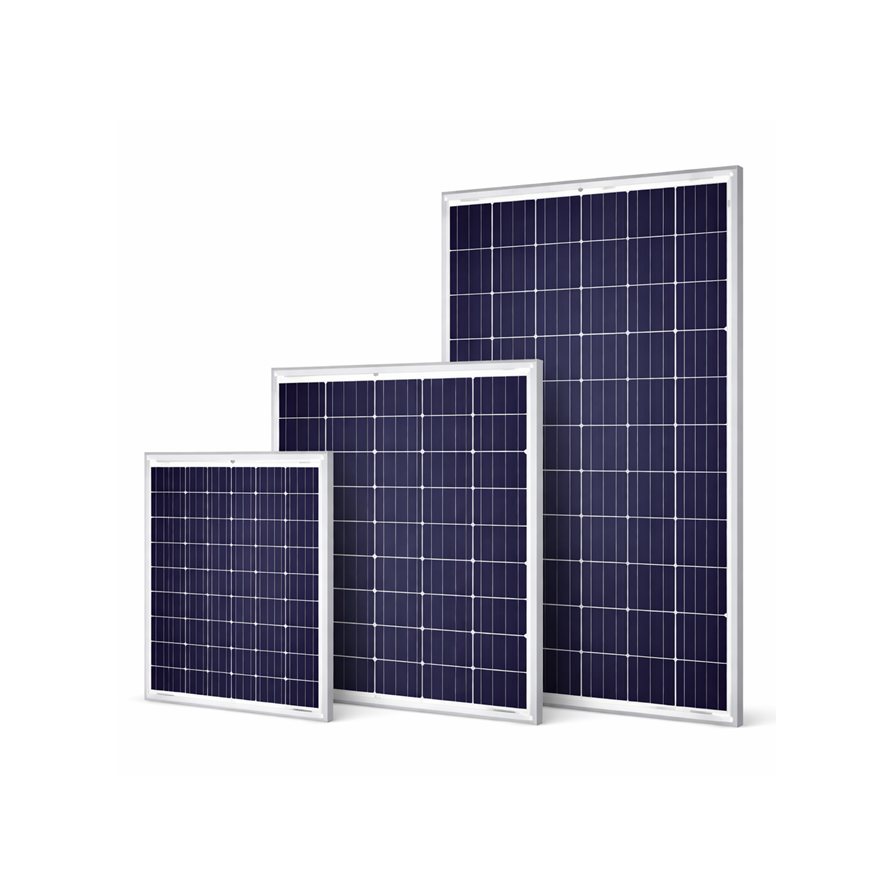

30W Solar Panel to suit Commercial Flood Lights.
Model numbers: SLDFL10-WW, SLDFL10-CW, SLDFL30-WW and SLDFL30-CW.
Specifications
- Power Tolerance - 0 ~ +3%
- Max power at STC (Pmax) - 30W
- Optimum operating voltage (Vmp) - 18.2V
- Optimum operating current (Imp) – 1.65A
- Open circuit voltage (Voc) - 22.2V
- Short circuit current (Isc) – 1.80A
- Maximum series Fuse - 15A
- Weight – 2.8kg
- 645mm (L) x 350mm (W) x 25mm (H)
- Application class - A class
- Operating Temperature : -40oC to +85 oC
- Maximum System Voltage – 1000V DC
Features
- Polycrystalline panel
- Fold out, adjustable legs
- IP65 rated connector box
- IP65 rated cable and plug
Applications
- To use in conjunction with:
